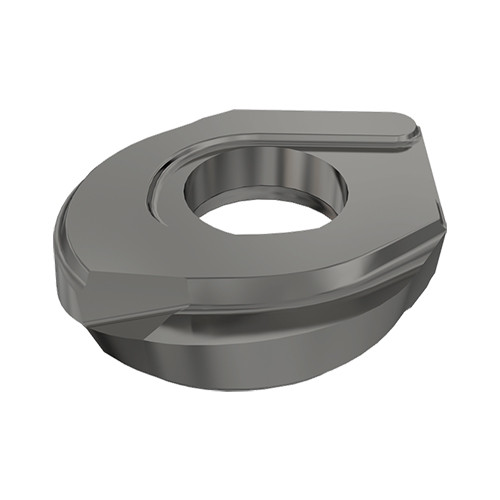

HBR D1.0-QF IC908
BALLPLUS, 2 cutting edges (fully effective), 220° spherical cutting profile inserts. Used for profiling, up and down ramping, steep profiles and undercutting. Accuracy is within .0004″. May be used for roughing or finishing applications.
Price: Log in For Price
Especificaciones de Producto
| Materiales aplicables | | Acero | Aceros inoxidables | Fundición | Materiales Duros | Aleac. Altas Temp. | | Filo de corte para material especifico | Carbide |
| Aplicación | | Desahogo | Fresado Descendente | Perfilado | | Tool Type | Single sided Inserts |

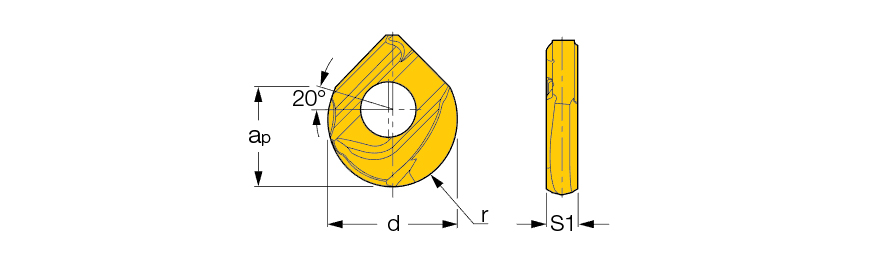

| Radio de punta (RE) | 1/2″ | Minimum Feed per Tooth (fz(min)) | 0.001 ″/tooth |
| Profundidad máxima de corte (APMX) | 0.67″ | Numero de aristas de corte | 2 |
| Espesor de la plaquita (S) | 0.212″ | Tipo de medición | Inch |
| Recubrimiento | TiAlN | Material del cuerpo | Carbide |
| Grado | IC908 | Unidad | I |
| Maximum Feed per Tooth (fz(max)) | 0.008 ″/tooth |
Características de Producto
| DescDeFamilia | BALLPLUS, 2 cutting edges (fully effective), 220° spherical cutting profile inserts. Used for profiling, up and down ramping, steep profiles and undercutting. Accuracy is within .0004″. May be used for roughing or finishing applications. | Nombre de la familia | HBR-QF |
| COO | Israel | Nombre de la marca | Iscar |
Shipping Info
Peso del Paquete
0.0754
Nombre
Milling Indexable Inserts
Nombre de la familia
HBR-QF
Nombre de la marca
Iscar
